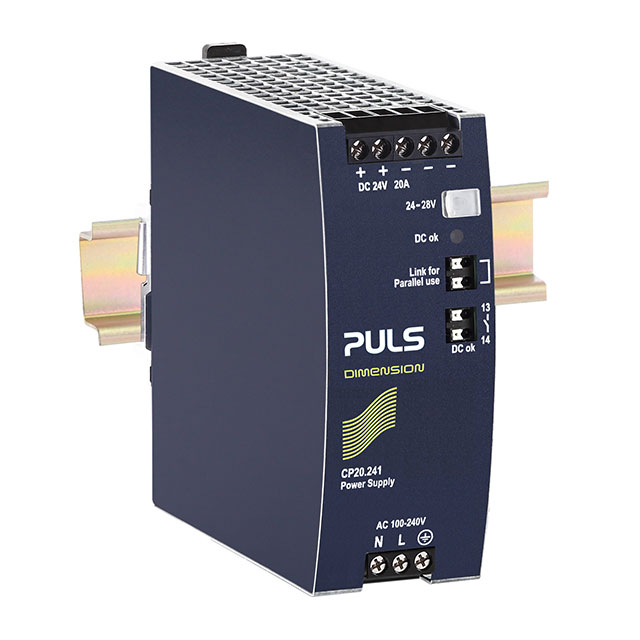

| Part number: | CP20.241 |
| Description: | AC/DC DIN RAIL SUPPLY 24V 480W |
| Manufacturer | PULS |
| Encapsulation | Box |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "PULS" |
| Power (Watts) | 480W |
| Features | Adjustable Output, PFC, Universal Input |
| Size / Dimension | 5.00" L x 1.89" W x 4.88" H (127.0mm x 48.0mm x 124.0mm) |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Applications | Hazardous Locations, ITE (Commercial) |
| Input Type | AC or DC |
| Approval Agency | ATEX, EAC, IEC, IECEx, UL |
| Efficiency | 95.6% |
| Current - Output (Max) | 20A |
| Voltage - Output 1 | 24V |
| Number of Outputs | 1 |
| Standard Number | Class I Div 2; 61010-2-201 |
| AC Voltage - Input | 85 ~ 264 VAC |
| DC Voltage - Input (Min) | 110V |
| DC Voltage - Input (Max) | 150V |
|
