| Part number: | 80SXE27M |

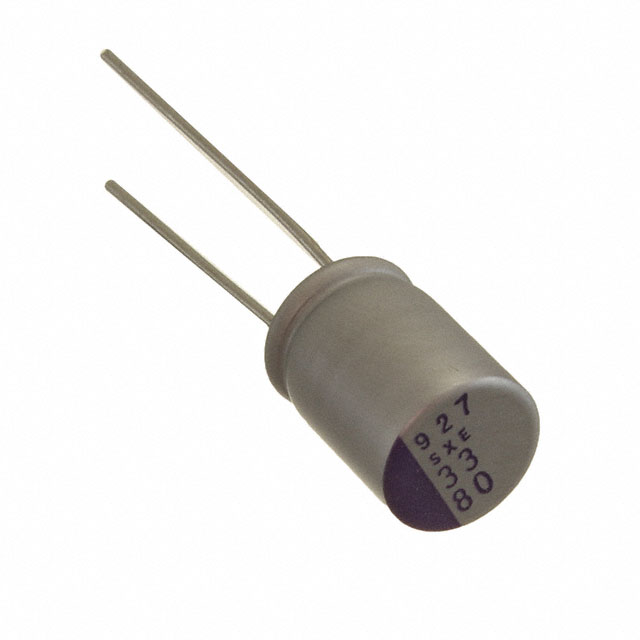

| Description: | CAP ALUM POLY 27UF 20% 80V T/H |
| Manufacturer | Panasonic Electronic Components |
| Encapsulation | Bulk |
| Quantity | 200 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Panasonic Electronic Components" |
| Tolerance | ±20% |
| Package / Case | Radial, Can |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Mounting Type | Through Hole |
| Type | Polymer |
| Operating Temperature | -55°C ~ 125°C |
| Applications | General Purpose |
| Lead Spacing | 0.138" (3.50mm) |
| ESR (Equivalent Series Resistance) | 35mOhm |
| Lifetime @ Temp. | 1000 Hrs @ 125°C |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Capacitance | 27 µF |
| Voltage - Rated | 80 V |
| Ripple Current @ Low Frequency | 39 mA @ 120 Hz |
| Ripple Current @ High Frequency | 780 mA @ 100 kHz |
|
