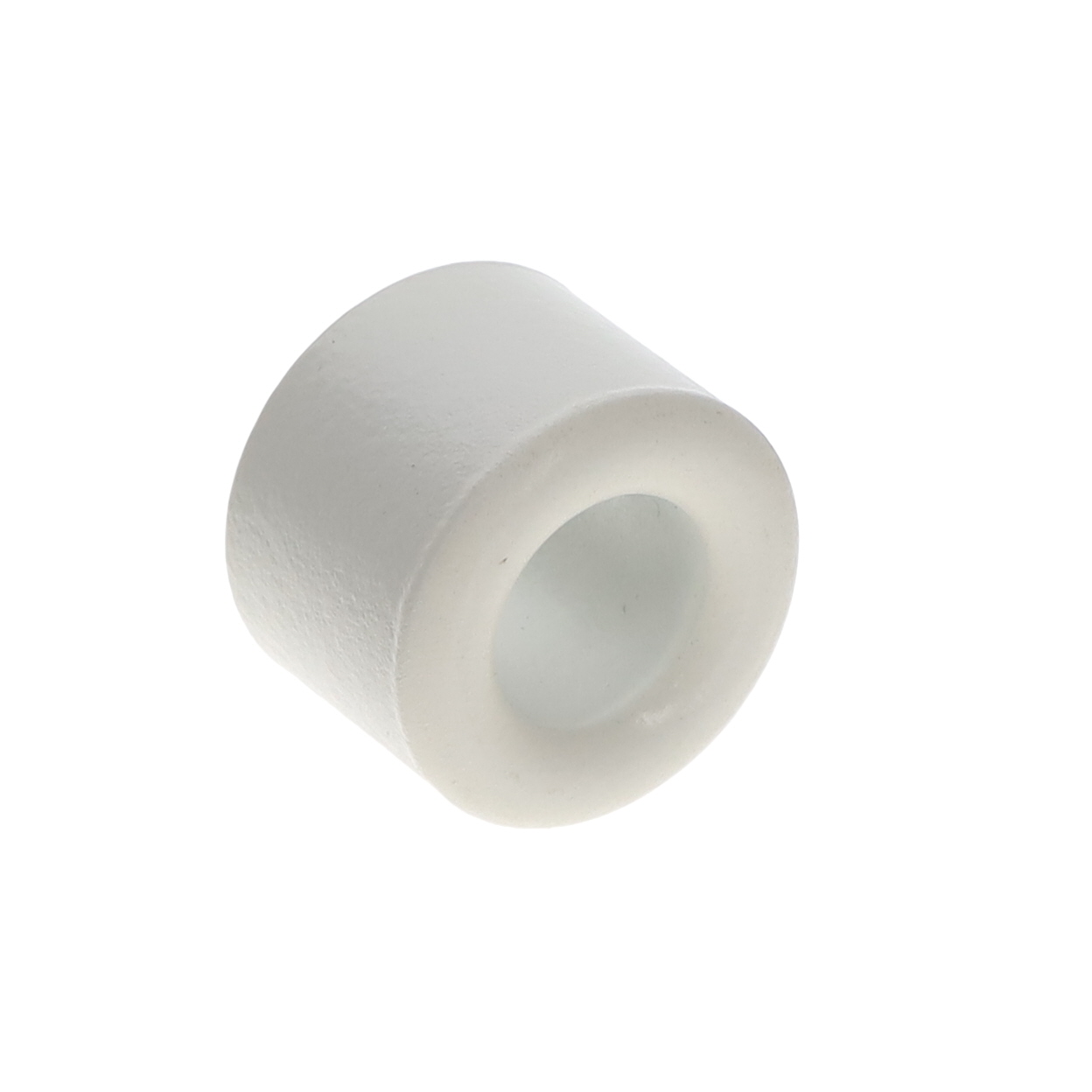

| Part number: | TX26/15/20-3E12 |
| Description: | FERRITE CORE TOROID |
| Manufacturer | FERROXCUBE |
| Encapsulation | Bulk |
| Quantity | 144 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "FERROXCUBE" |
| Tolerance | ±30% |
| Diameter | 1.061" (26.95mm) |
| Height | 0.827" (21.00mm) |
| Core Type | Toroid |
| Supplier Device Package | TX 26 x 15 x 20 |
| Finish | Epoxy |
| Gap | Ungapped |
| Effective Permeability (µe) | 12000 |
| Core Factor (ΣI/A) mm⁻¹ | 0.538 |
| Effective Length (le) mm | 60.1 |
| Effective Area (Ae) mm² | 112 |
| Effective Magnetic Volume (Ve) mm³ | 6720 |
|
