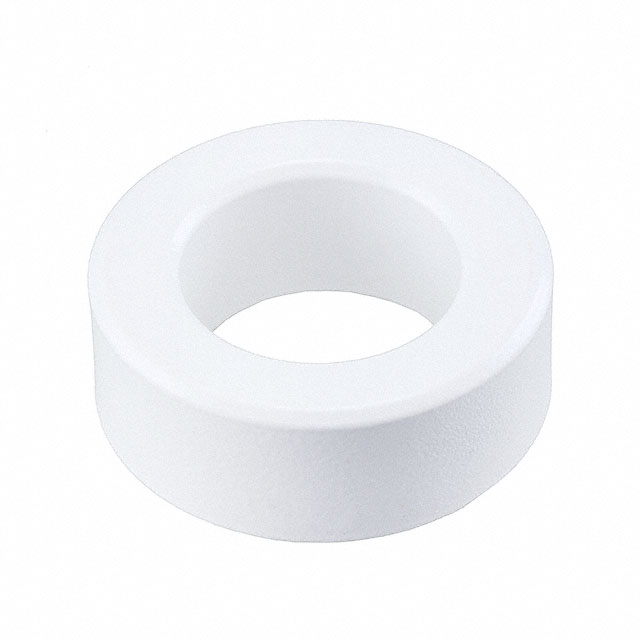

| Part number: | TX55/32/18-3E10-M |
| Description: | FERRITE CORE TOROID |
| Manufacturer | FERROXCUBE |
| Encapsulation | Bulk |
| Quantity | 40 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "FERROXCUBE" |
| Tolerance | ±30% |
| Diameter | 2.264" (57.50mm) |
| Height | 0.756" (19.20mm) |
| Core Type | Toroid |
| Supplier Device Package | TX 55 x 32 x 18 |
| Finish | Epoxy |
| Gap | Ungapped |
| Effective Permeability (µe) | 9500 |
| Core Factor (ΣI/A) mm⁻¹ | 0.651 |
| Effective Length (le) mm | 132 |
| Effective Area (Ae) mm² | 202 |
| Effective Magnetic Volume (Ve) mm³ | 26580 |
|
