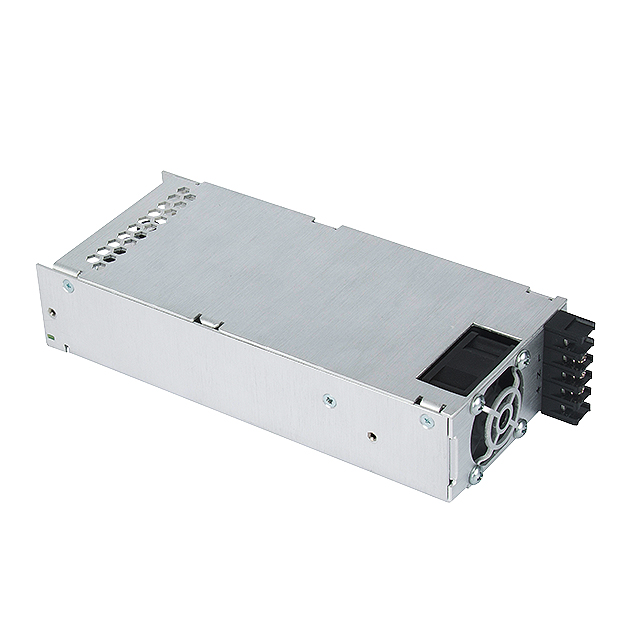

| Part number: | GCU500PS24-EF |
| Description: | AC/DC CONVERTER 24V 250W |
| Manufacturer | XP Power |
| Encapsulation | Box |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "XP Power" |
| Power (Watts) | 250W (499W Forced Air) |
| Features | Remote On/Off, Standby Output, Universal Input |
| Size / Dimension | 7.56" L x 3.30" W x 1.64" H (192.0mm x 83.8mm x 41.8mm) |
| Mounting Type | Chassis Mount |
| Voltage - Input | 80 ~ 264 VAC |
| Type | Open Frame |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
| Applications | ITE (Commercial), Medical |
| Approval Agency | CB, CE, TUV, UL |
| Efficiency | 92% |
| Voltage - Output 1 | 24V |
| Minimum Load Required | No |
| Number of Outputs | 1 |
| Voltage - Isolation | 4 kV |
| Standard Number | 62368-1 |
| Current - Output 1 | 20.8 A |
|
