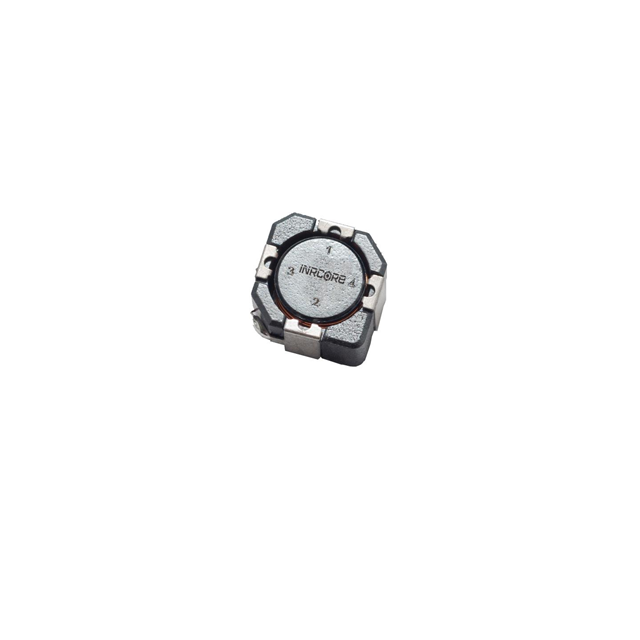

| Part number: | PL9205T |
| Description: | FIXED IND 4.5UH 5.1A 16.5MOHM SM |
| Manufacturer | PulseR (iNRCORE) |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 650 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "PulseR (iNRCORE)" |
| Tolerance | ±30% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.413" L x 0.413" W (10.50mm x 10.50mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Operating Temperature | -55°C ~ 130°C |
| DC Resistance (DCR) | 16.5mOhm Max |
| Current - Saturation (Isat) | 5.5A |
| Height - Seated (Max) | 0.201" (5.10mm) |
| Inductance | 4.5 µH |
| Current Rating (Amps) | 5.1 A |
|
