| Part number: | FG-23629-D65 |

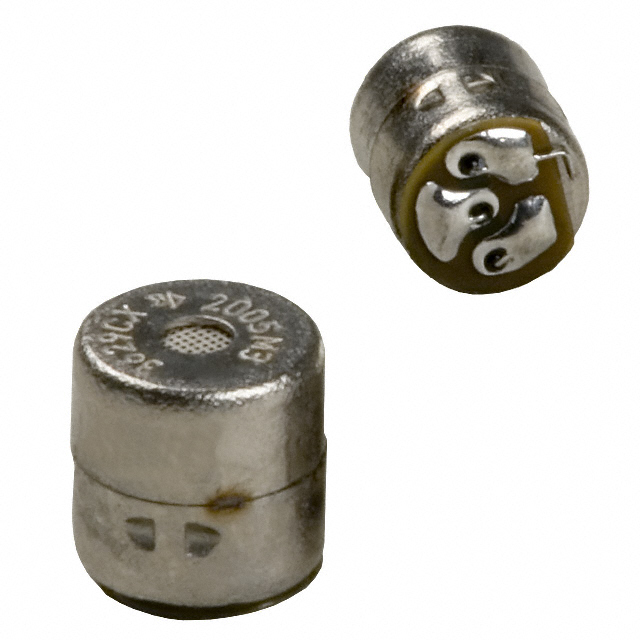

| Description: | MIC COND ANLG OMNI -53DB 0.101"D |
| Manufacturer | Knowles |
| Encapsulation | Bulk |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Knowles" |
| Output Type | Analog |
| Size / Dimension | 0.101" Dia (2.57mm) |
| Sensitivity | -53dB ±3dB @ 74dB SPL |
| Shape | Circular |
| Type | Electret Condenser |
| Termination | Solder Pads |
| Direction | Omnidirectional |
| Port Location | Top |
| Height (Max) | 0.127" (3.22mm) |
| Voltage - Rated | 1.3 V |
| Impedance | 4.4 kOhms |
| Current - Supply | 50 µA |
| Voltage Range | 1.3 V ~ 3 V |
| Frequency Range | 100 Hz ~ 10 kHz |
|
