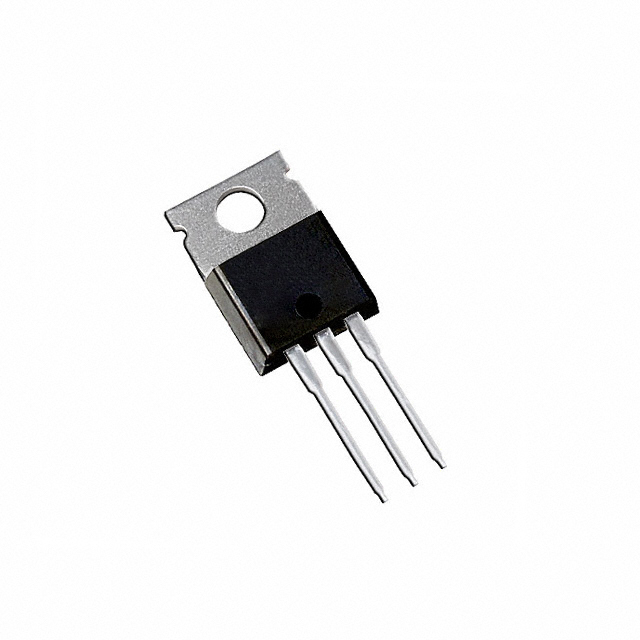

| Part number: | IRGB4B60KD1PBF |
| Description: | IGBT NPT 600V 11A TO220AB |
| Manufacturer | IR (Infineon Technologies) |
| Encapsulation | Tube |
| Quantity | 50 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "IR (Infineon Technologies)" |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 93 ns |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 4A |
| Supplier Device Package | TO-220AB |
| IGBT Type | NPT |
| Td (on/off) @ 25°C | 22ns/100ns |
| Switching Energy | 73µJ (on), 47µJ (off) |
| Test Condition | 400V, 4A, 100Ohm, 15V |
| Gate Charge | 12 nC |
| Current - Collector (Ic) (Max) | 11 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 22 A |
| Power - Max | 63 W |
|
