| Part number: | IRG4PH40UD-EPBF |
| Description: | IGBT 1200V 41A 160W TO247-3 |
| Manufacturer | IR (Infineon Technologies) |
| Encapsulation | Bag |
| Quantity | 25 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "IR (Infineon Technologies)" |

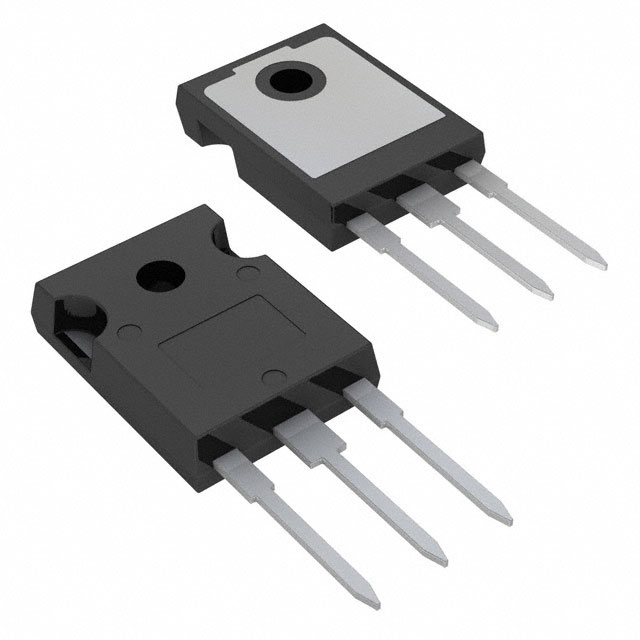

| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 63 ns |
| Vce(on) (Max) @ Vge, Ic | 3.1V @ 15V, 21A |
| Supplier Device Package | TO-247AC |
| Td (on/off) @ 25°C | 46ns/97ns |
| Switching Energy | 1.8mJ (on), 1.93mJ (off) |
| Test Condition | 800V, 21A, 10Ohm, 15V |
| Gate Charge | 86 nC |
| Current - Collector (Ic) (Max) | 41 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector Pulsed (Icm) | 82 A |
| Power - Max | 160 W |
|
