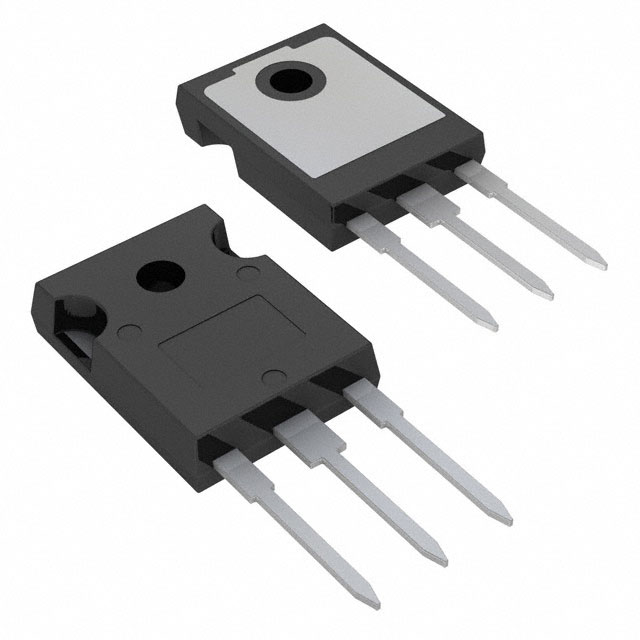

| Part number: | IRG4PF50WPBF |
| Description: | IGBT 900V 51A 200W TO247AC |
| Manufacturer | IR (Infineon Technologies) |
| Encapsulation | Tube |
| Quantity | 400 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "IR (Infineon Technologies)" |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 2.7V @ 15V, 28A |
| Supplier Device Package | TO-247AC |
| Td (on/off) @ 25°C | 29ns/110ns |
| Switching Energy | 190µJ (on), 1.06mJ (off) |
| Test Condition | 720V, 28A, 5Ohm, 15V |
| Gate Charge | 160 nC |
| Current - Collector (Ic) (Max) | 51 A |
| Voltage - Collector Emitter Breakdown (Max) | 900 V |
| Current - Collector Pulsed (Icm) | 204 A |
| Power - Max | 200 W |
|
