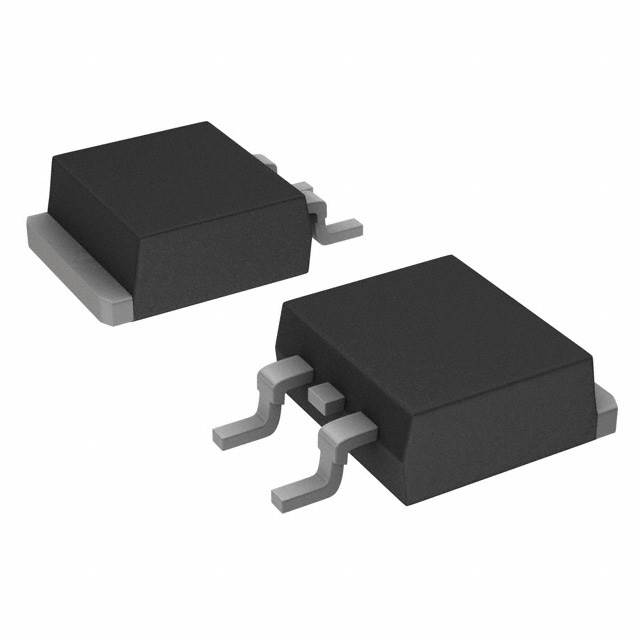

| Part number: | IRG4BC20UD-SPBF |
| Description: | IGBT 600V 13A 60W D2PAK |
| Manufacturer | IR (Infineon Technologies) |
| Encapsulation | Tube |
| Quantity | 50 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "IR (Infineon Technologies)" |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 37 ns |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 6.5A |
| Supplier Device Package | D2PAK |
| Td (on/off) @ 25°C | 39ns/93ns |
| Switching Energy | 160µJ (on), 130µJ (off) |
| Test Condition | 480V, 6.5A, 50Ohm, 15V |
| Gate Charge | 27 nC |
| Current - Collector (Ic) (Max) | 13 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 52 A |
| Power - Max | 60 W |
|
