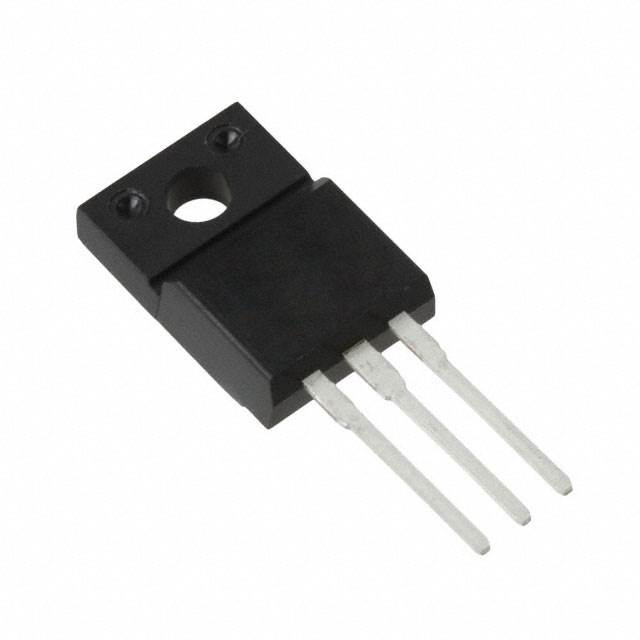

| Part number: | IRG4IBC30KDPBF |
| Description: | IGBT 600V 17A 45W TO220FP |
| Manufacturer | IR (Infineon Technologies) |
| Encapsulation | Tube |
| Quantity | 2000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "IR (Infineon Technologies)" |
| Package / Case | TO-220-3 Full Pack |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 42 ns |
| Vce(on) (Max) @ Vge, Ic | 2.7V @ 15V, 16A |
| Supplier Device Package | TO-220AB Full-Pak |
| Td (on/off) @ 25°C | 60ns/160ns |
| Switching Energy | 600µJ (on), 580µJ (off) |
| Test Condition | 480V, 16A, 23Ohm, 15V |
| Gate Charge | 67 nC |
| Current - Collector (Ic) (Max) | 17 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 34 A |
| Power - Max | 45 W |
|
