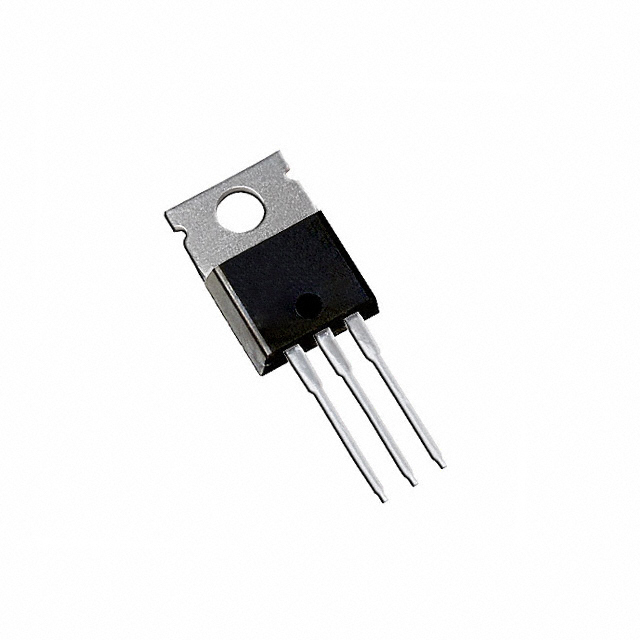

| Part number: | IRG4BC30FD1PBF |
| Description: | IGBT 600V 31A 100W TO220AB |
| Manufacturer | IR (Infineon Technologies) |
| Encapsulation | Tube |
| Quantity | 1000 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "IR (Infineon Technologies)" |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 46 ns |
| Vce(on) (Max) @ Vge, Ic | 1.8V @ 15V, 17A |
| Supplier Device Package | TO-220AB |
| Td (on/off) @ 25°C | 22ns/250ns |
| Switching Energy | 370µJ (on), 1.42mJ (off) |
| Test Condition | 480V, 17A, 23Ohm, 15V |
| Gate Charge | 57 nC |
| Current - Collector (Ic) (Max) | 31 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 124 A |
| Power - Max | 100 W |
|
