| Part number: | 9272 0061000 |

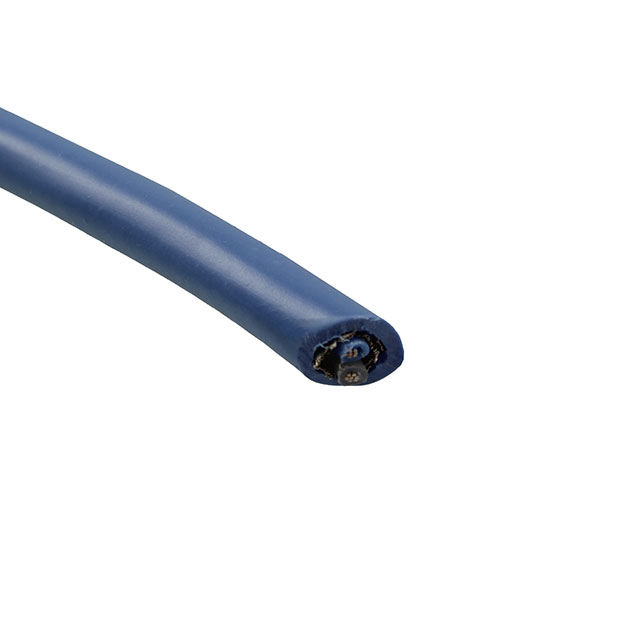

| Description: | TWINAX 20AWG 78 OHM |
| Manufacturer | Belden |
| Encapsulation | Spool |
| Quantity | 1000 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Belden" |
| Length | 1000.0' (304.80m) |
| Wire Gauge | 20 AWG |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Conductor Strand | 7 Strands / 28 AWG |
| Operating Temperature | -20°C ~ 60°C |
| Cable Type | Twinaxial |
| Jacket (Insulation) Diameter | 0.244" (6.20mm) |
| Dielectric Material | Polyethylene (PE) |
| Shield Coverage | 93% |
| Shield Material | Copper, Tinned |
| Shield Type | Braid |
| Conductor Material | Copper, Tinned |
| Jacket Color | Blue |
| VoP, Velocity of Propagation | 66 |
| Impedance | 78 Ohms |
|
