| Part number: | 760308101221 |

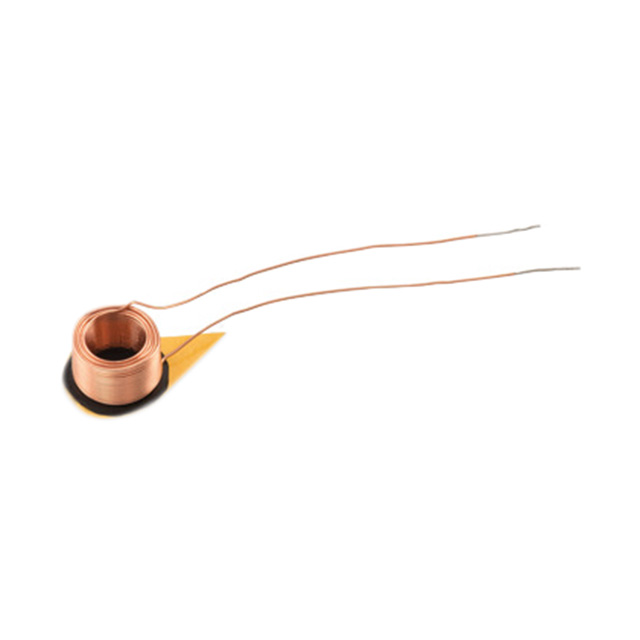

| Description: | WE-WPCC WIRELESS POWER CHARGING |
| Manufacturer | Würth Elektronik Midcom |
| Encapsulation | Bulk |
| Quantity | 60 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Würth Elektronik Midcom" |
| Tolerance | ±10% |
| Inductance | 24µH |
| Size / Dimension | 0.24" Dia x 0.16" H (6.0mm x 4.0mm) |
| Current Rating (Amps) | 400mA |
| Function | Receiver |
| Type | 1 Coil, 6 Layer |
| Operating Temperature | -20°C ~ 105°C |
| DC Resistance (DCR) | 1.15Ohm Max |
| Q @ Freq | 16 @ 125kHz |
| Frequency - Self Resonant | 10MHz |
| Current - Saturation (Isat) | 1A |
|
