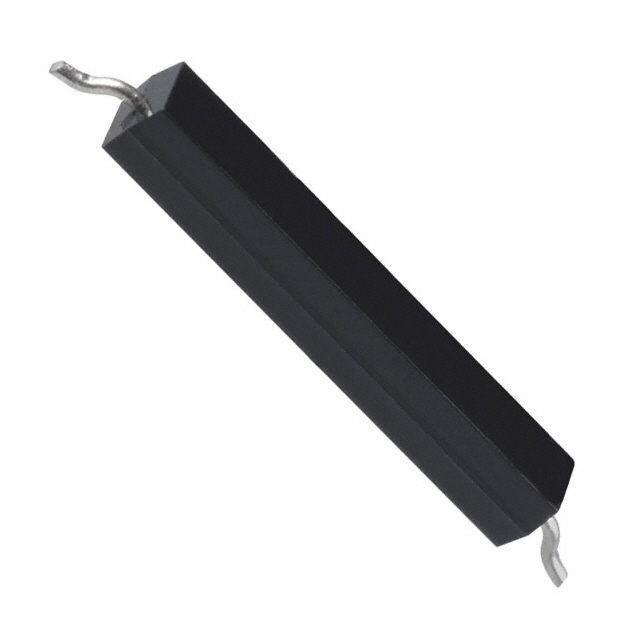

| Part number: | 59165-1-U-00-C |
| Description: | SWITCH REED SPST-NO 350MA 140V |
| Manufacturer | Wickmann / Littelfuse |
| Encapsulation | Bulk |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Wickmann / Littelfuse" |
| Mounting Type | Surface Mount |
| Circuit | SPST-NO |
| Type | Molded Body Reed |
| Operating Temperature | -40°C ~ 105°C |
| Termination Style | Gull Wing |
| Length - Overall | 0.795" (20.19mm) |
| Power - Rated | 10W |
| Height Above Board | 0.099" (2.52mm) |
| Current - Switching | 350mA (AC), 500mA (DC) |
| Voltage - Switching DC | 200 V |
| Operate Time | 1 ms |
| Release Time | 1 ms |
| Size - Body | 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm) |
| Operate Range | 20 ~ 25AT |
| Current - Carry | 800mA (DC) |
| Voltage - Switching AC | 140 V |
| Capacitance | 0.3 pF |
|
