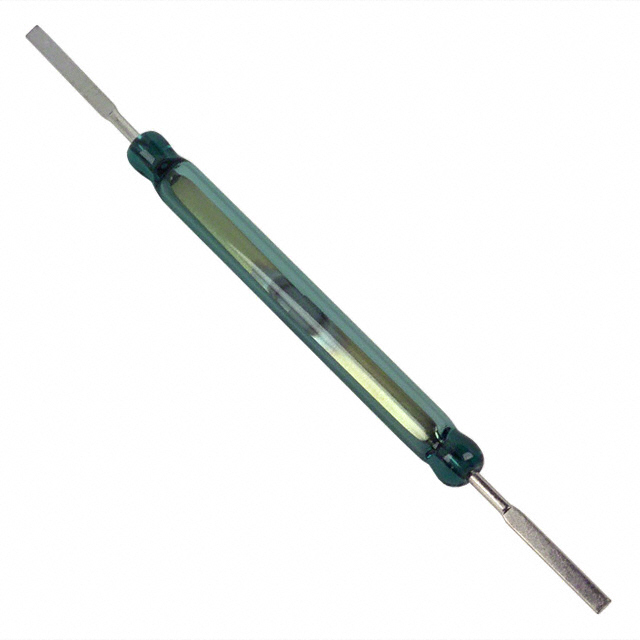

| Part number: | DRR-129-67-73 |
| Description: | SWITCH REED SPST-NO 2.1A 280V |
| Manufacturer | Wickmann / Littelfuse |
| Encapsulation | Bulk |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Wickmann / Littelfuse" |
| Mounting Type | Surface Mount |
| Circuit | SPST-NO |
| Type | Glass Body Reed |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | Axial, Flat |
| Length - Overall | 3.250" (82.55mm) |
| Power - Rated | 100W |
| Current - Switching | 2.1A (AC), 3A (DC) |
| Voltage - Switching DC | 400 V |
| Operate Time | 4.5 ms |
| Release Time | 2.5 ms |
| Size - Body | 0.207" Dia x 2.000" L (5.25mm x 50.80mm) |
| Operate Range | 67 ~ 73AT |
| Current - Carry | 6A (DC) |
| Voltage - Switching AC | 280 V |
| Capacitance | 0.6 pF |
|
