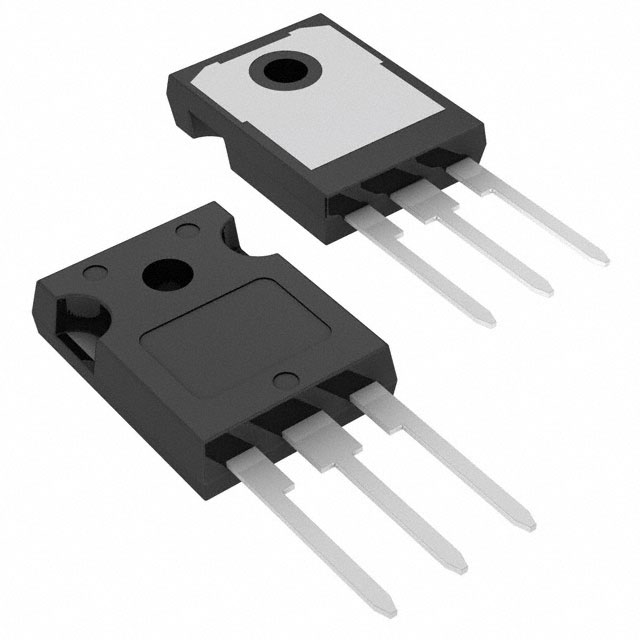

| Part number: | HGTG20N60A4 |
| Description: | IGBT 600V 70A TO247-3 |
| Manufacturer | Sanyo Semiconductor/onsemi |
| Encapsulation | Tube |
| Quantity | 450 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Sanyo Semiconductor/onsemi" |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 2.7V @ 15V, 20A |
| Supplier Device Package | TO-247-3 |
| Td (on/off) @ 25°C | 15ns/73ns |
| Switching Energy | 105µJ (on), 150µJ (off) |
| Test Condition | 390V, 20A, 3Ohm, 15V |
| Gate Charge | 142 nC |
| Current - Collector (Ic) (Max) | 70 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 280 A |
| Power - Max | 290 W |
|
