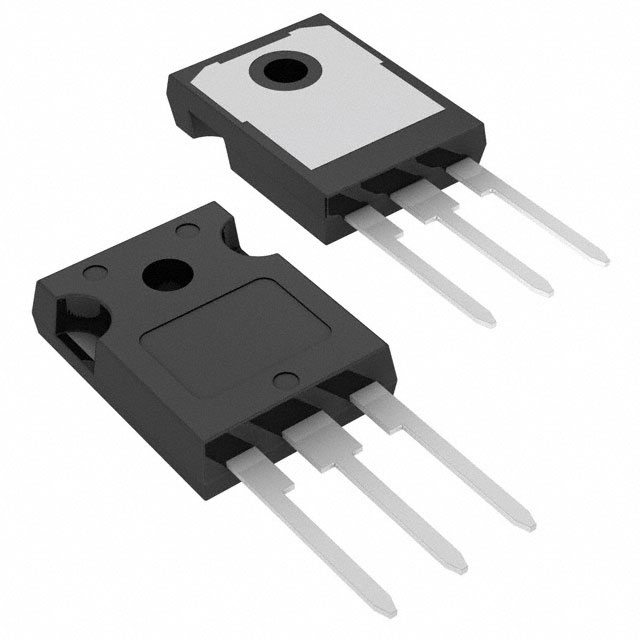

| Part number: | HGTG30N60A4 |
| Description: | IGBT 600V 75A TO247-3 |
| Manufacturer | Sanyo Semiconductor/onsemi |
| Encapsulation | Tube |
| Quantity | 450 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Sanyo Semiconductor/onsemi" |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 2.6V @ 15V, 30A |
| Supplier Device Package | TO-247-3 |
| Td (on/off) @ 25°C | 25ns/150ns |
| Switching Energy | 280µJ (on), 240µJ (off) |
| Test Condition | 390V, 30A, 3Ohm, 15V |
| Gate Charge | 225 nC |
| Current - Collector (Ic) (Max) | 75 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 240 A |
| Power - Max | 463 W |
|
