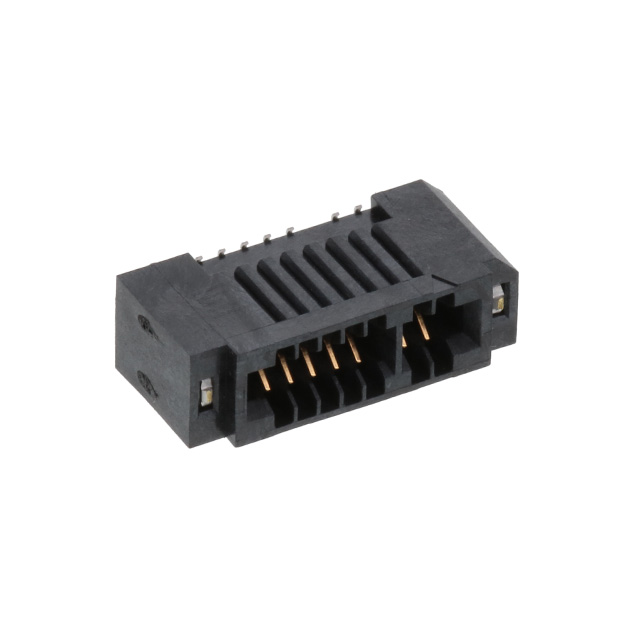

| Part number: | MECF-08-01-L-DV-WT |
| Description: | CONN EDGE DUAL FMALE 16POS 0.05 |
| Manufacturer | Samtec, Inc. |
| Encapsulation | Tube |
| Quantity | 31 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Samtec, Inc." |
| Features | Board Guide |
| Gender | Female |
| Contact Finish | Gold |
| Color | Black |
| Mounting Type | Surface Mount |
| Number of Positions | 16 |
| Pitch | 0.050" (1.27mm) |
| Operating Temperature | -55°C ~ 125°C |
| Read Out | Dual |
| Contact Type | Cantilever |
| Card Type | Non Specified - Dual Edge |
| Card Thickness | 0.062" (1.57mm) |
| Termination | Solder |
| Contact Finish Thickness | 10.0µin (0.25µm) |
| Material - Insulation | Liquid Crystal Polymer (LCP) |
| Contact Material | Beryllium Copper |
| Number of Rows | 2 |
|
