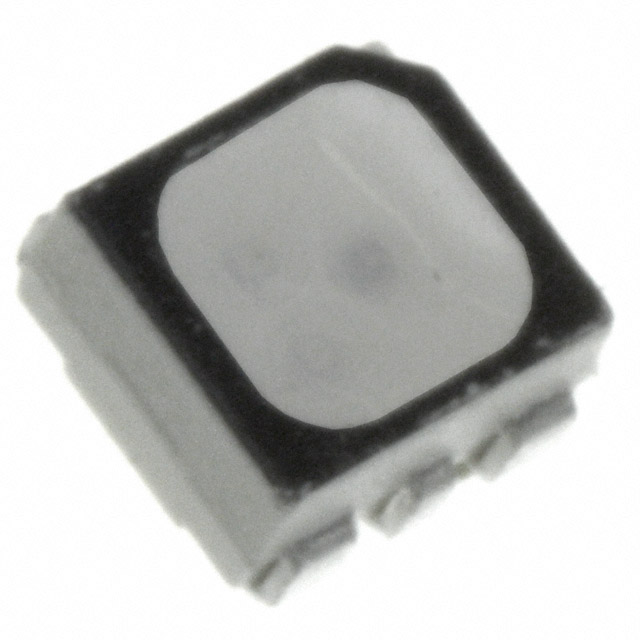

| Part number: | OVSTRGBBCR8 |
| Description: | LED RGB CLEAR 6PLCC SMD |
| Manufacturer | TT Electronics / Optek Technology |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 900 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TT Electronics / Optek Technology" |
| Package / Case | 6-SMD, J-Lead |
| Color | Red, Green, Blue (RGB) |
| Size / Dimension | 6.00mm L x 5.00mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 1000mcd Red, 900mcd Green, 280mcd Blue |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 2V Red, 4V Green, 4V Blue |
| Lens Color | Colorless |
| Current - Test | 50mA Red, 50mA Green, 50mA Blue |
| Viewing Angle | 120° |
| Height (Max) | 2.50mm |
| Wavelength - Peak | 620nm Red, 521nm Green, 468nm Blue |
| Wavelength - Dominant | 624nm Red, 525nm Green, 470nm Blue |
| Supplier Device Package | 6-PLCC |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 4.00mm Dia |
|
