| Part number: | OVSTRGBLC6 |

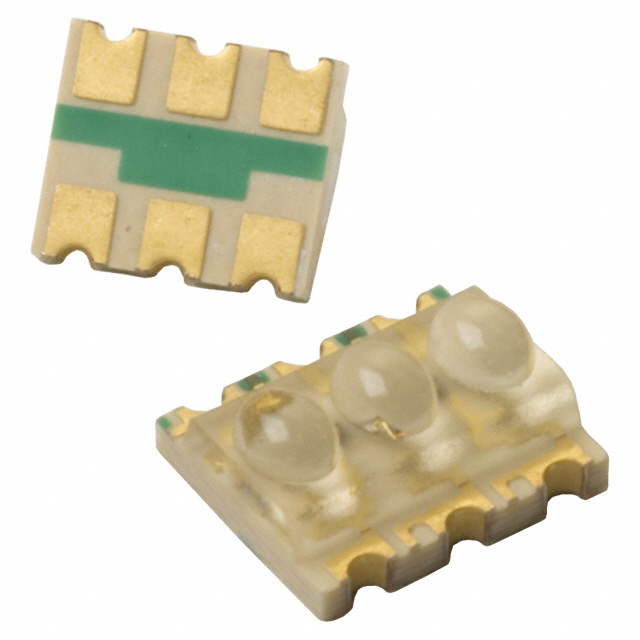

| Description: | LED RGB CLEAR TOP VIEW LED SMD |
| Manufacturer | TT Electronics / Optek Technology |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1000 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "TT Electronics / Optek Technology" |
| Package / Case | 1412 (3530 Metric) |
| Color | Red, Green, Blue (RGB) |
| Size / Dimension | 3.50mm L x 3.00mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 180mcd Red, 550mcd Green, 152mcd Blue |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 1.9V Red, 3.3V Green, 3.4V Blue |
| Lens Color | Colorless |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Height (Max) | 1.55mm |
| Wavelength - Dominant | 626nm Red, 530nm Green, 470nm Blue |
| Supplier Device Package | Top View LED |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 2.10mm x 3.50mm |
|
