| Part number: | MP3318GC-Z |
| Description: | IC LED DRV RGLTR PWM 12WLCSP |
| Manufacturer | MPS (Monolithic Power Systems) |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "MPS (Monolithic Power Systems)" |

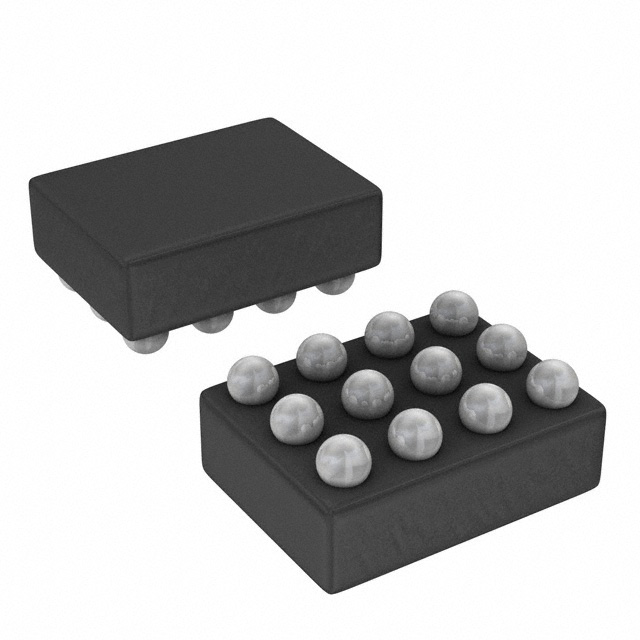

| Package / Case | 12-UFBGA, WLCSP |
| Voltage - Output | 38V |
| Mounting Type | Surface Mount |
| Number of Outputs | 3 |
| Frequency | 475kHz ~ 1.05MHz |
| Type | DC DC Regulator |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Applications | Backlight |
| Current - Output / Channel | 50mA |
| Internal Switch(s) | Yes |
| Topology | Step-Up (Boost) |
| Supplier Device Package | 12-WLCSP (1.3x1.7) |
| Dimming | Analog, PWM |
| Voltage - Supply (Min) | 2.7V |
| Voltage - Supply (Max) | 5.5V |
|
