| Part number: | MV-253 |

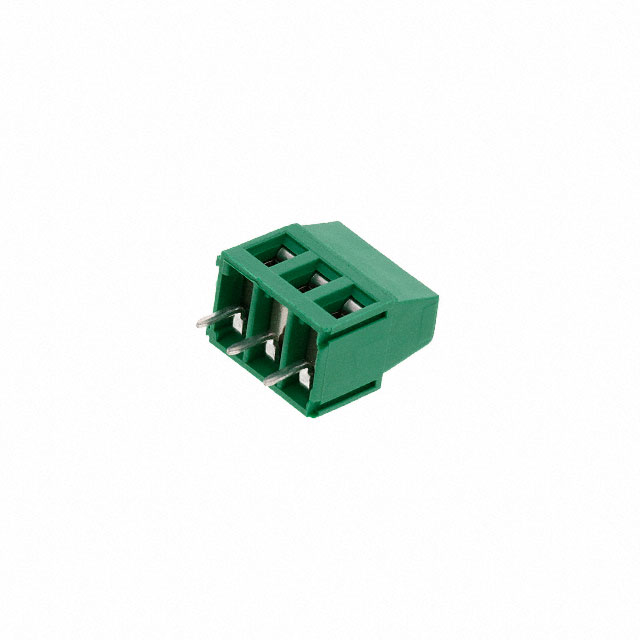

| Description: | TERM BLK 3P SIDE ENT 5.08MM PCB |
| Manufacturer | Altech Corporation |
| Encapsulation | Bulk |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Altech Corporation" |
| Features | Interlocking (Side) |
| Color | Green |
| Mounting Type | Through Hole |
| Wire Gauge | 14-30 AWG |
| Pitch | 0.200" (5.08mm) |
| Mating Orientation | Horizontal with Board |
| Positions Per Level | 3 |
| Housing Material | Polyamide (PA), Nylon |
| Contact Material - Plating | Brass - Tin Plated |
| Clamp Material - Plating | Brass - Nickel Plated |
| Screw Material - Plating | Steel, Galvanized |
| Torque - Screw | 0.5 Nm (4.4 Lb-In) |
| Screw Thread | M3 |
| Wire Termination | Screw - Rising Cage Clamp |
| Current | 15 A |
| Number of Levels | 1 |
| Voltage | 300 V |
|
