| Part number: | 71S188-K00L5 |

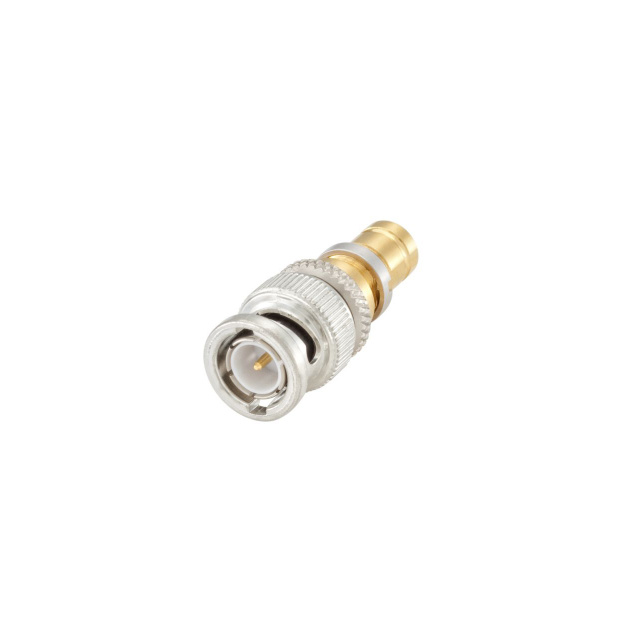

| Description: | BNC 75 OHM ADAPTER |
| Manufacturer | Rosenberger |
| Encapsulation | Bulk |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Rosenberger" |
| Impedance | 75 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
| Convert From (Adapter End) | BNC Plug, Male Pin |
| Convert To (Adapter End) | 1.6/5.6 Jack, Female Socket |
| Operating Temperature | -65°C ~ 165°C |
| Insertion Loss | 0.05dB |
| Fastening Type | Bayonet Lock, Threaded |
| Dielectric Material | Liquid Crystal Polymer (LCP); Polytetrafluoroethylene (PTFE) |
| Adapter Series | BNC to 1.6/5.6 |
| Adapter Type | Plug to Jack |
| Center Gender | Female to Male |
| Conversion Type | Between Series |
| Body Material | Brass |
| Mating Cycles | 500 |
| Center Contact Material | Beryllium Copper |
| Body Finish | Gold, Nickel |
| Center Contact Plating | Gold |
| Frequency - Max | 4 GHz |
|
