| Part number: | 03S109-S00S3 |

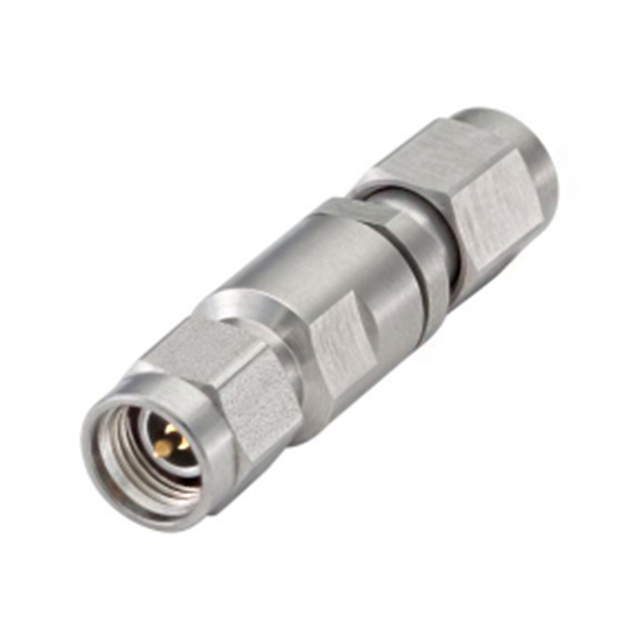

| Description: | PRECISION 3.5 ADAPTER |
| Manufacturer | Rosenberger |
| Encapsulation | Bulk |
| Quantity | 5 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Rosenberger" |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
| Convert From (Adapter End) | 3.5mm Plug, Male Pin |
| Convert To (Adapter End) | 2.4mm (APC-2.4, OS-50) Plug, Male Pin |
| Operating Temperature | -40°C ~ 85°C |
| Insertion Loss | 0.26dB |
| Fastening Type | Threaded, Threaded |
| Dielectric Material | Polystyrene (PS); Polytetrafluoroethylene (PTFE) |
| Adapter Series | RPC-3.50 to RPC-2.40 |
| Adapter Type | Plug to Plug |
| Center Gender | Male to Male |
| Conversion Type | Between Series |
| Body Material | Stainless Steel |
| Mating Cycles | 500 |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Frequency - Max | 26.5 GHz |
|
