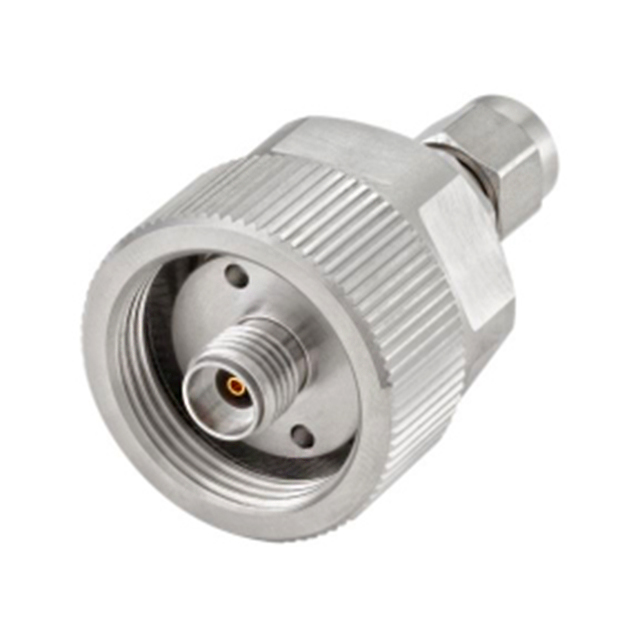

| Part number: | 02KR121-S0AS3 |
| Description: | PRECISION 2.92 TESTPORT ADAPTER |
| Manufacturer | Rosenberger |
| Encapsulation | Bulk |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Rosenberger" |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
| Convert From (Adapter End) | 2.92mm (OS-2.9) Jack, Female Socket |
| Convert To (Adapter End) | 2.92mm (OS-2.9) Plug, Male Pin |
| Operating Temperature | -40°C ~ 85°C |
| Insertion Loss | 0.25dB |
| Fastening Type | Threaded, Threaded |
| Dielectric Material | Polyetheretherketone (PEEK) |
| Adapter Series | RPC-2.92 to RPC-2.92 |
| Adapter Type | Plug to Jack |
| Center Gender | Female to Male |
| Conversion Type | Same Series |
| Body Material | Stainless Steel |
| Mating Cycles | 500 |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Frequency - Max | 40 GHz |
|
