| Part number: | 08KR121-S0AS3 |

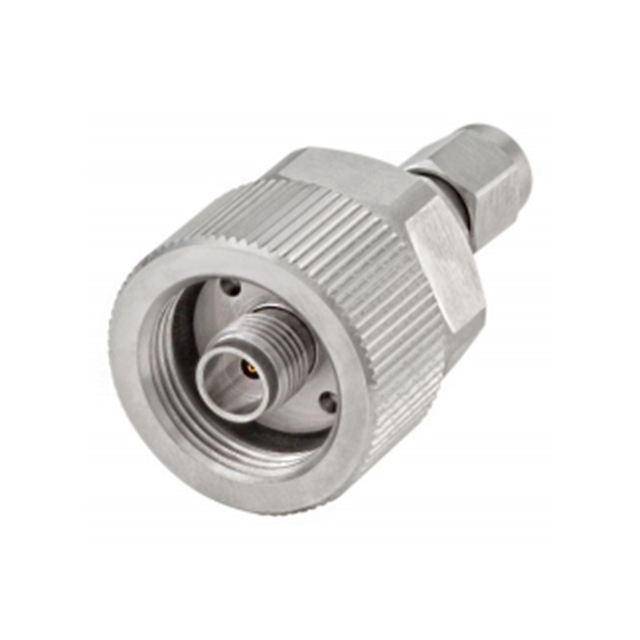

| Description: | PRECISION 1.85 TESTPORT ADAPTER |
| Manufacturer | Rosenberger |
| Encapsulation | Bulk |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Rosenberger" |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
| Convert From (Adapter End) | 1.85mm Jack, Female Socket |
| Convert To (Adapter End) | 1.85mm Plug, Male Pin |
| Operating Temperature | -40°C ~ 85°C |
| Insertion Loss | 0.42dB |
| Fastening Type | Threaded, Threaded |
| Dielectric Material | Polyetheretherketone (PEEK) |
| Adapter Series | RPC-1.85 to RPC-1.85 |
| Adapter Type | Plug to Jack |
| Center Gender | Female to Male |
| Conversion Type | Same Series |
| Body Material | Stainless Steel |
| Mating Cycles | 500 |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Frequency - Max | 70 GHz |
|
