| Part number: | NPC-410-030A-3-L |

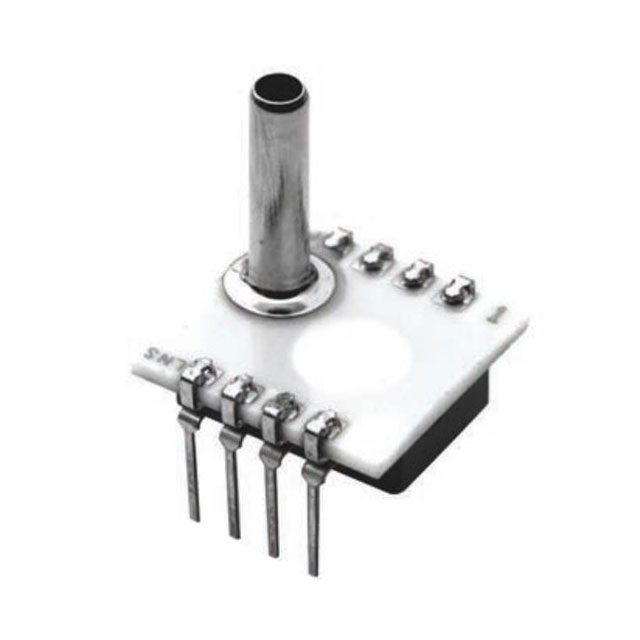

| Description: | SENSOR 30PSIA 0.13" .125V 8DIP |
| Manufacturer | Amphenol NovaSensor |
| Encapsulation | Tray |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Amphenol NovaSensor" |
| Features | Temperature Compensated |
| Package / Case | 8-DIP Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Through Hole |
| Output | 0 mV ~ 125 mV |
| Operating Pressure | 30PSI (206.84kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.1% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | PC Pin |
| Port Size | Male - 0.13" (3.23mm) Tube, Dual |
| Applications | Board Mount |
| Supplier Device Package | 8-DIP |
| Port Style | Barbless |
| Maximum Pressure | 90PSI (620.53kPa) |
|
