| Part number: | SN74LVC1G10DBVR |
| Description: | IC GATE NAND 1CH 3-INP SOT23-6 |
| Manufacturer | Texas Instruments |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Texas Instruments" |

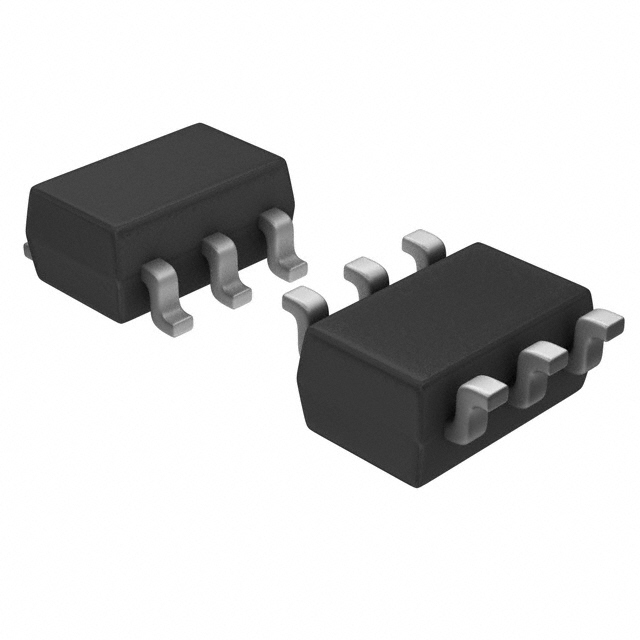

| Package / Case | SOT-23-6 |
| Mounting Type | Surface Mount |
| Logic Type | NAND Gate |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Output High, Low | 32mA, 32mA |
| Number of Inputs | 3 |
| Supplier Device Package | SOT-23-6 |
| Input Logic Level - High | 1.7V ~ 2V |
| Input Logic Level - Low | 0.7V ~ 0.8V |
| Max Propagation Delay @ V, Max CL | 3.6ns @ 5V, 50pF |
| Number of Circuits | 1 |
| Current - Quiescent (Max) | 10 µA |
|
