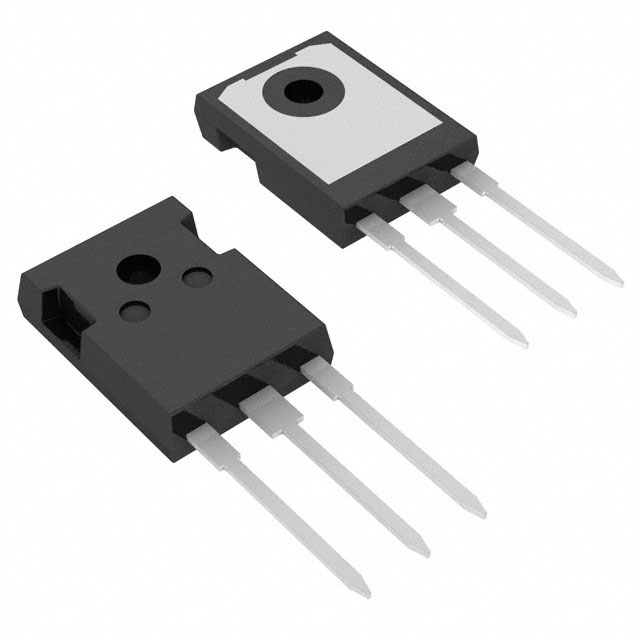

| Part number: | IXSH30N60B2D1 |
| Description: | IGBT 600V 48A 250W TO247 |
| Manufacturer | Littelfuse / IXYS RF |
| Encapsulation | Bulk |
| Quantity | 30 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Littelfuse / IXYS RF" |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 30 ns |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 24A |
| Supplier Device Package | TO-247AD |
| IGBT Type | PT |
| Td (on/off) @ 25°C | 30ns/130ns |
| Switching Energy | 550µJ (off) |
| Test Condition | 400V, 24A, 5Ohm, 15V |
| Gate Charge | 50 nC |
| Current - Collector (Ic) (Max) | 48 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 90 A |
| Power - Max | 250 W |
|
