| Part number: | 2N2609 |
| Description: | JFET P-CH 30V 10MA TO18 |
| Manufacturer | Roving Networks (Microchip Technology) |
| Encapsulation | Bag |
| Quantity | 1 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Roving Networks (Microchip Technology)" |

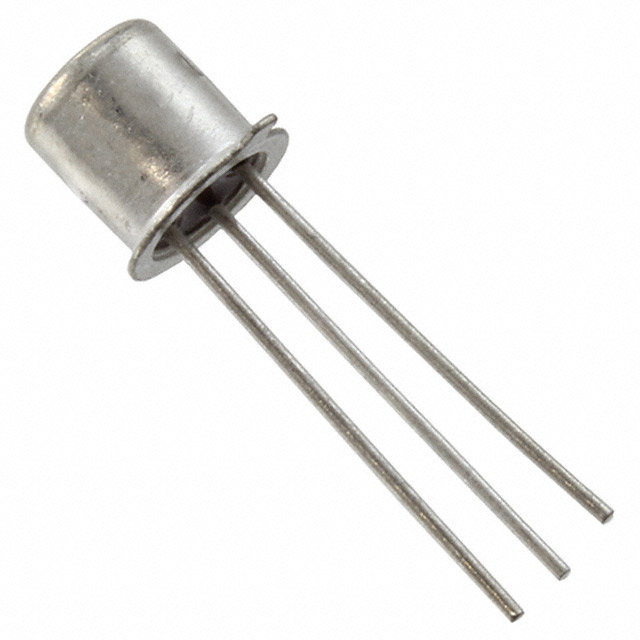

| Package / Case | TO-206AA, TO-18-3 Metal Can |
| Mounting Type | Through Hole |
| Operating Temperature | -65°C ~ 200°C (TJ) |
| FET Type | P-Channel |
| Input Capacitance (Ciss) (Max) @ Vds | 10pF @ 5V |
| Voltage - Breakdown (V(BR)GSS) | 30 V |
| Current Drain (Id) - Max | 10 mA |
| Supplier Device Package | TO-18 (TO-206AA) |
| Power - Max | 300 mW |
| Voltage - Cutoff (VGS off) @ Id | 750 mV @ 1 A |
| Current - Drain (Idss) @ Vds (Vgs=0) | 2 mA @ 5 V |
|
