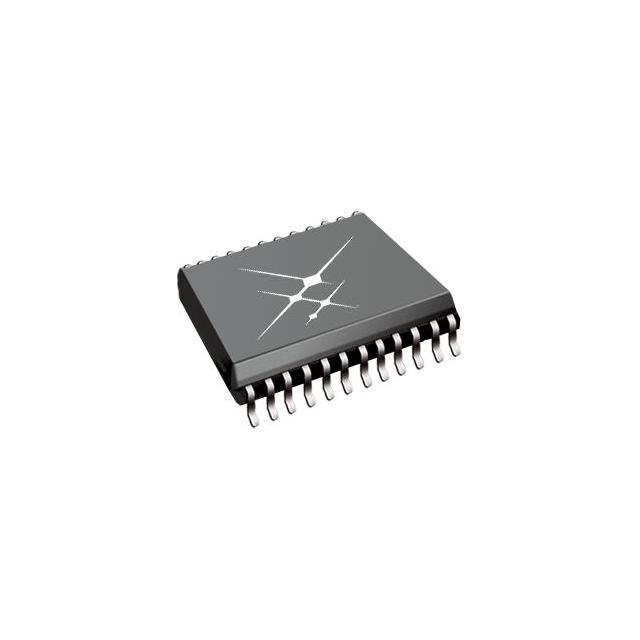

| Part number: | SI88644EC-IS |
| Description: | DGTL ISO 5000VRMS 4CH GP 24SOIC |
| Manufacturer | Skyworks Solutions, Inc. |
| Encapsulation | Tube |
| Quantity | 32 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Skyworks Solutions, Inc." |
| Package / Case | 24-SOIC (0.295", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 3V ~ 5.5V |
| Data Rate | 100Mbps |
| Technology | Capacitive Coupling |
| Voltage - Isolation | 5000Vrms |
| Inputs - Side 1/Side 2 | 0/4 |
| Supplier Device Package | 24-SOIC |
| Rise / Fall Time (Typ) | 2.5ns, 2.5ns |
| Common Mode Transient Immunity (Min) | 40kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 18ns, 23ns |
| Isolated Power | No |
| Channel Type | Unidirectional |
| Pulse Width Distortion (Max) | 7ns |
| Number of Channels | 4 |
|
