| Part number: | 0273.800V |

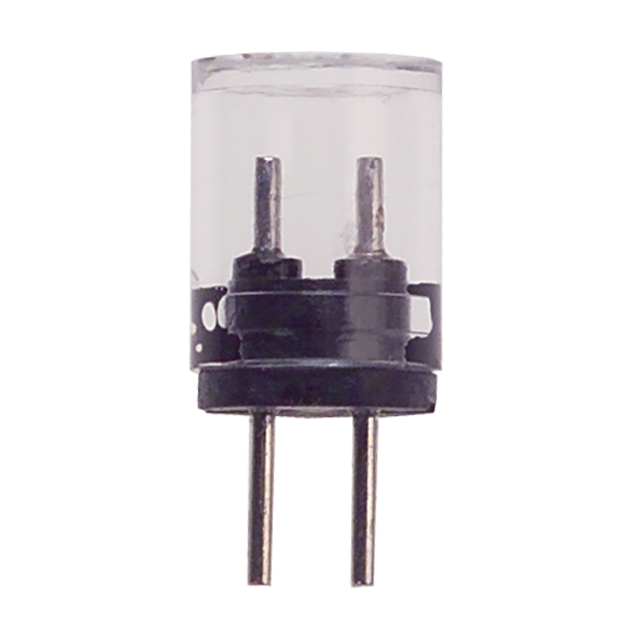

| Description: | FUSE BOARD MNT 800MA 125VAC/VDC |
| Manufacturer | Wickmann / Littelfuse |
| Encapsulation | Bulk |
| Quantity | 5 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Wickmann / Littelfuse" |
| Package / Case | Radial, Can, Vertical |
| Size / Dimension | 0.250" Dia x 0.350" H (6.35mm x 8.89mm) |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 85°C |
| Response Time | Fast Blow |
| Approval Agency | CSA, QPL, UL |
| DC Cold Resistance | 0.271 Ohms |
| Breaking Capacity @ Rated Voltage | 10kA |
| Current Rating (Amps) | 800 mA |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 V |
| Melting I²t | 0.113 |
|
