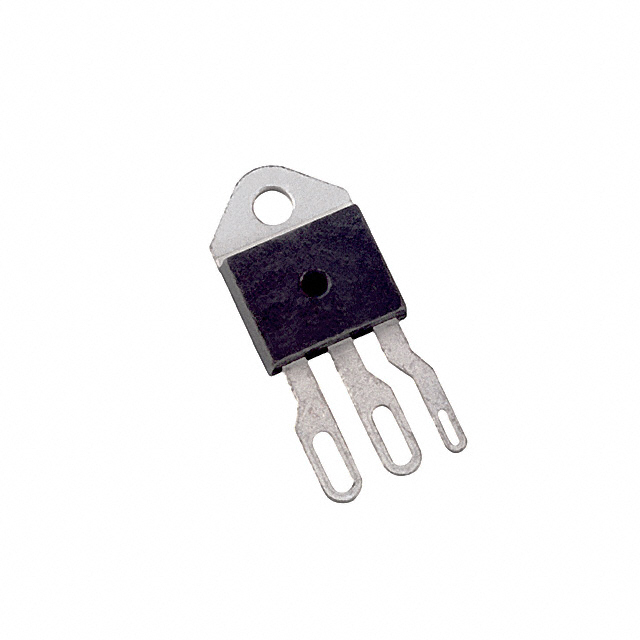

| Part number: | Q2040J7TP |
| Description: | TRIAC ALTERNISTOR 200V TO218X |
| Manufacturer | Wickmann / Littelfuse |
| Encapsulation | Tube |
| Quantity | 25 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Wickmann / Littelfuse" |
| Package / Case | TO-218X-3 Isolated Tab |
| Mounting Type | Through Hole |
| Triac Type | Alternistor - Snubberless |
| Configuration | Single |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Current - Hold (Ih) (Max) | 100 mA |
| Current - Gate Trigger (Igt) (Max) | 100 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 335A, 400A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V |
| Supplier Device Package | TO-218X Isolated |
| Current - On State (It (RMS)) (Max) | 40 A |
| Voltage - Off State | 200 V |
|
