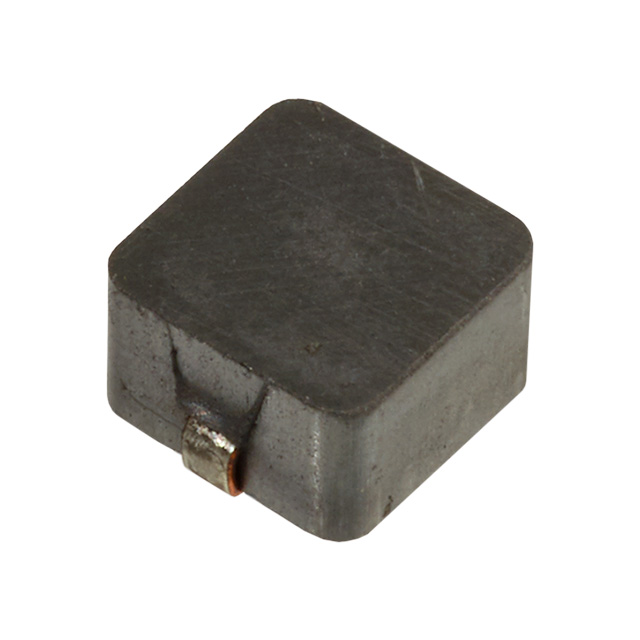

| Part number: | TCK-108 |
| Description: | FIXED IND 3.3UH 3.3A 50MOHM SMD |
| Manufacturer | TRACO Power |
| Encapsulation | Strip |
| Quantity | 10 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TRACO Power" |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 50mOhm |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.083" (2.10mm) |
| Inductance | 3.3 µH |
| Current Rating (Amps) | 3.3 A |
|
