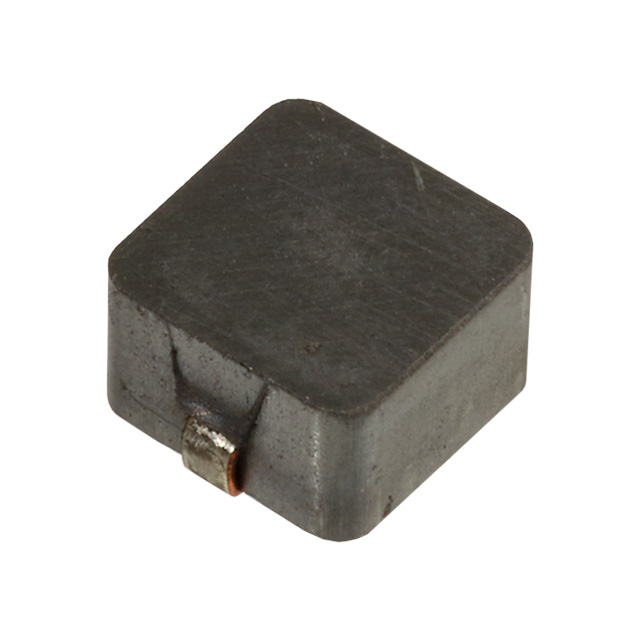

| Part number: | TCK-116 |
| Description: | FIXED IND 10UH 2.3A 200MOHM SMD |
| Manufacturer | TRACO Power |
| Encapsulation | Strip |
| Quantity | 10 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TRACO Power" |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.213" L x 0.185" W (5.40mm x 4.70mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 200mOhm |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.087" (2.20mm) |
| Inductance | 10 µH |
| Current Rating (Amps) | 2.3 A |
|
