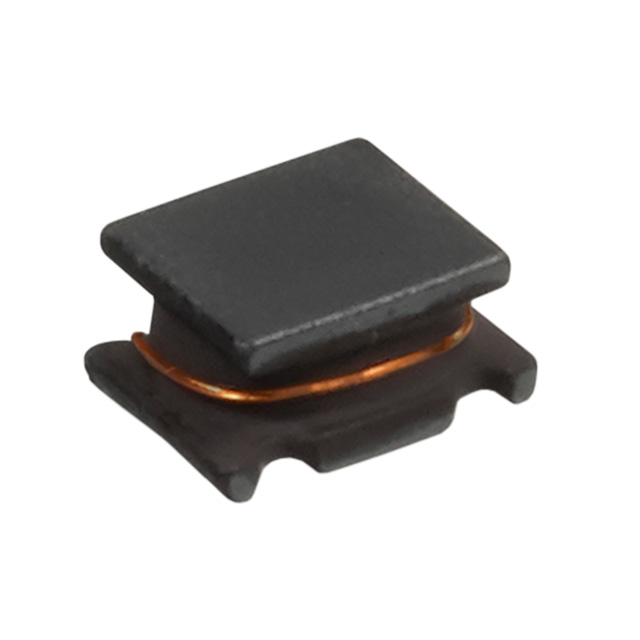

| Part number: | TCK-120 |
| Description: | FIXED IND 10UH 900MA 354MOHM SMD |
| Manufacturer | TRACO Power |
| Encapsulation | Bag |
| Quantity | 10 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TRACO Power" |
| Tolerance | ±20% |
| Package / Case | 1210 (3225 Metric) |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 354mOhm |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.067" (1.70mm) |
| Inductance | 10 µH |
| Current Rating (Amps) | 900 mA |
|
