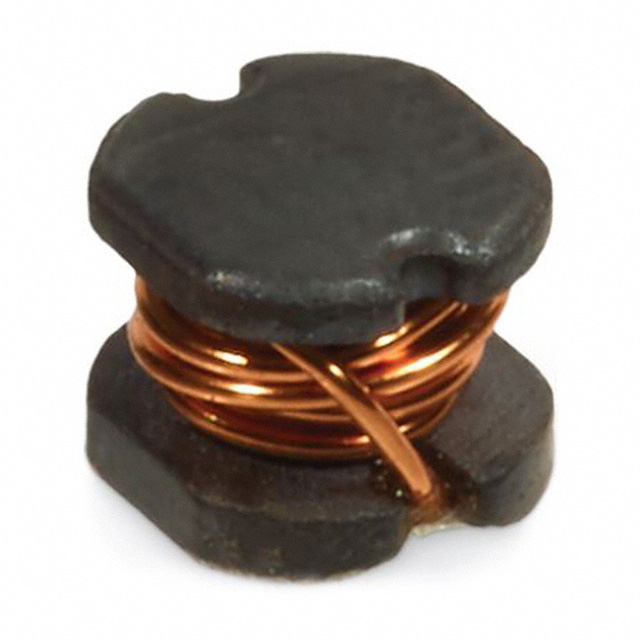

| Part number: | TCK-155 |
| Description: | FIXED IND 39UH 500MA 1 OHM SMD |
| Manufacturer | TRACO Power |
| Encapsulation | Bag |
| Quantity | 10 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TRACO Power" |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.138" L x 0.122" W (3.50mm x 3.10mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 1Ohm |
| Inductance Frequency - Test | 1 kHz |
| Height - Seated (Max) | 0.102" (2.60mm) |
| Inductance | 39 µH |
| Current Rating (Amps) | 500 mA |
|
