| Part number: | CVS-04TB |

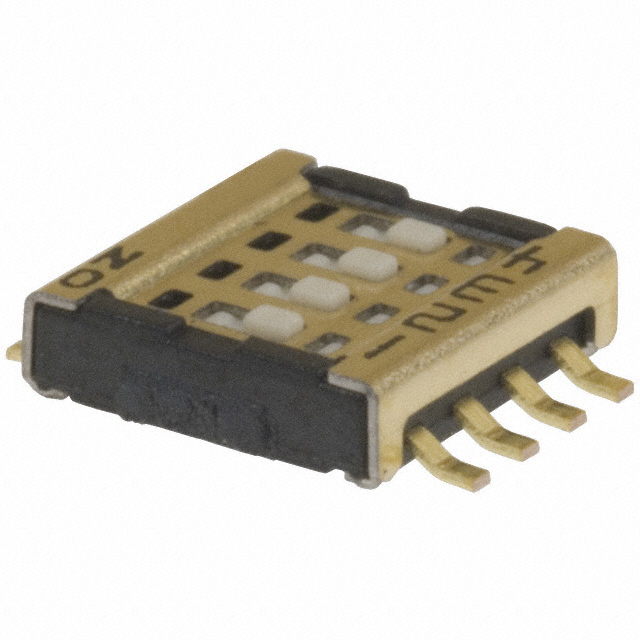

| Description: | SWITCH SLIDE DIP SPST 0.1A 6V |
| Manufacturer | Nidec Copal Electronics (Nidec Components) |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Nidec Copal Electronics (Nidec Components)" |
| Contact Finish | Gold |
| Voltage Rating | 6VDC |
| Current Rating (Amps) | 100mA |
| Mounting Type | Surface Mount |
| Pitch | 0.039" (1.00mm) |
| Circuit | SPST |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | Gull Wing |
| Actuator Type | Slide (Standard) |
| Height Above Board | 0.057" (1.45mm) |
| Actuator Level | Raised |
| Washable | No |
| Contact Material | Stainless Steel |
| Number of Positions | 4 |
|
