| Part number: | S-8130 |

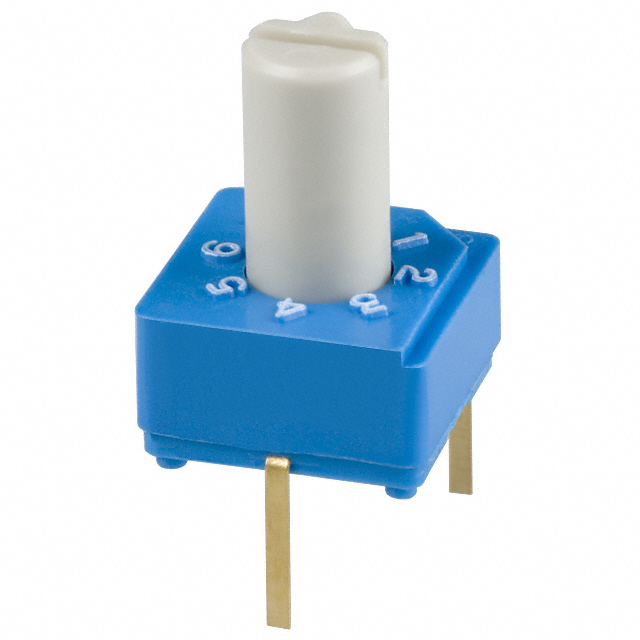

| Description: | SW ROTARY DIP OCT COMP 0.1A 5V |
| Manufacturer | Nidec Copal Electronics (Nidec Components) |
| Encapsulation | Bulk |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Nidec Copal Electronics (Nidec Components)" |
| Contact Finish | Gold |
| Voltage Rating | 5VDC |
| Current Rating (Amps) | 100mA |
| Mounting Type | Through Hole |
| Pitch | 0.100" (2.54mm), Full |
| Circuit | Octal Complement |
| Operating Temperature | -25°C ~ 70°C |
| Termination Style | PC Pin |
| Actuator Type | Rotary with Shaft |
| Height Above Board | 0.390" (9.90mm) |
| Actuator Level | Raised |
| Washable | Yes |
| Contact Material | Copper Alloy |
| Number of Positions | 8 |
|
