| Part number: | ADUM240E0WBRWZ |
| Description: | DGTL ISO 5000VRMS 4CH GP 16SOIC |
| Manufacturer | Linear Technology (Analog Devices, Inc.) |
| Encapsulation | Tube |
| Quantity | 47 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Linear Technology (Analog Devices, Inc.)" |

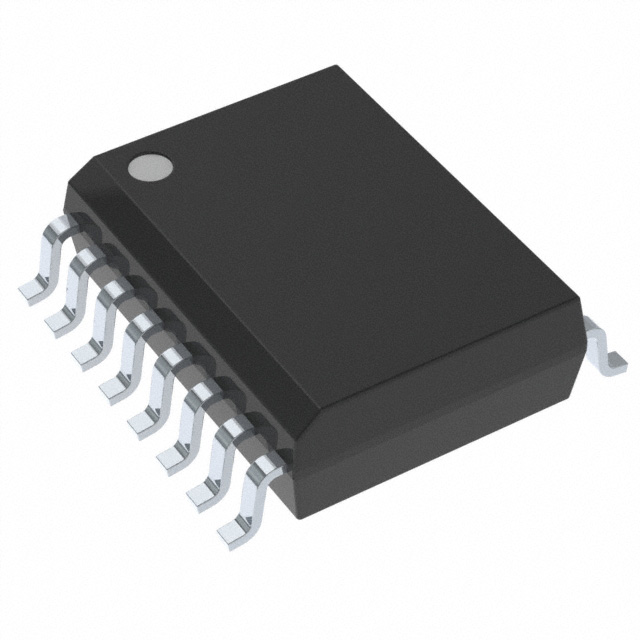

| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 1.7V ~ 5.5V |
| Data Rate | 150Mbps |
| Technology | Magnetic Coupling |
| Voltage - Isolation | 5000Vrms |
| Inputs - Side 1/Side 2 | 4/0 |
| Supplier Device Package | 16-SOIC |
| Rise / Fall Time (Typ) | 2.5ns, 2.5ns |
| Common Mode Transient Immunity (Min) | 75kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 13ns, 13ns |
| Isolated Power | No |
| Channel Type | Unidirectional |
| Pulse Width Distortion (Max) | 3ns |
| Grade | Automotive |
| Number of Channels | 4 |
|
