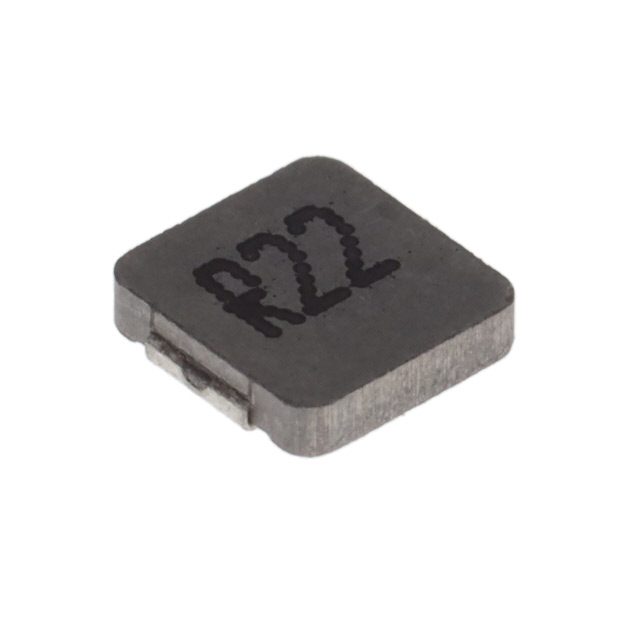

| Part number: | 0410CDMCCDS-R22MC |
| Description: | FIXED IND 220NH 9A 11.7MOHM SMD |
| Manufacturer | Sumida Corporation |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Sumida Corporation" |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.173" L x 0.165" W (4.40mm x 4.20mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Molded |
| Operating Temperature | -55°C ~ 125°C |
| DC Resistance (DCR) | 11.7mOhm Max |
| Current - Saturation (Isat) | 9.2A |
| Material - Core | Metal |
| Inductance Frequency - Test | 100 kHz |
| Supplier Device Package | SMD |
| Height - Seated (Max) | 0.039" (1.00mm) |
| Inductance | 220 nH |
| Current Rating (Amps) | 9 A |
|
