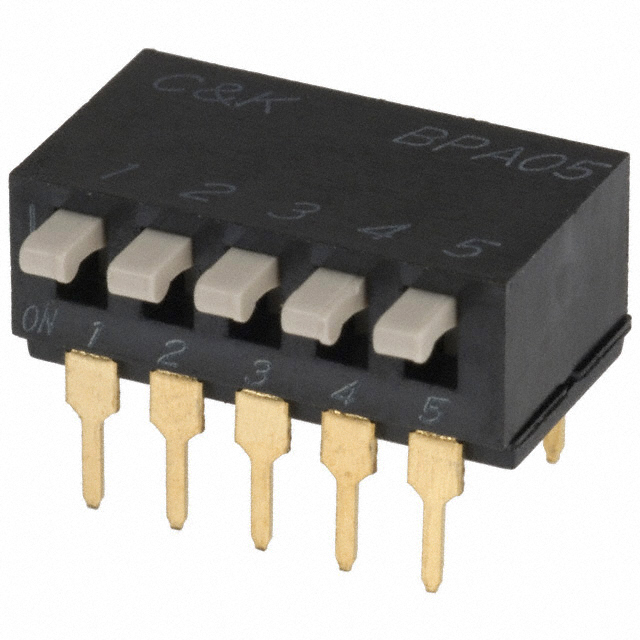

| Part number: | BPA05B |
| Description: | SWITCH PIANO DIP SPST 0.1A 5V |
| Manufacturer | Littelfuse / C&K |
| Encapsulation | Tube |
| Quantity | 30 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Littelfuse / C&K" |
| Contact Finish | Gold |
| Voltage Rating | 5VDC |
| Current Rating (Amps) | 100mA |
| Mounting Type | Through Hole, Right Angle |
| Pitch | 0.100" (2.54mm), Full |
| Circuit | SPST |
| Operating Temperature | -20°C ~ 85°C |
| Termination Style | PC Pin |
| Actuator Type | Piano |
| Height Above Board | 0.287" (7.30mm) |
| Actuator Level | Raised |
| Washable | Yes |
| Contact Material | Beryllium Copper |
| Number of Positions | 5 |
|
