| Part number: | DPC-24-450 |

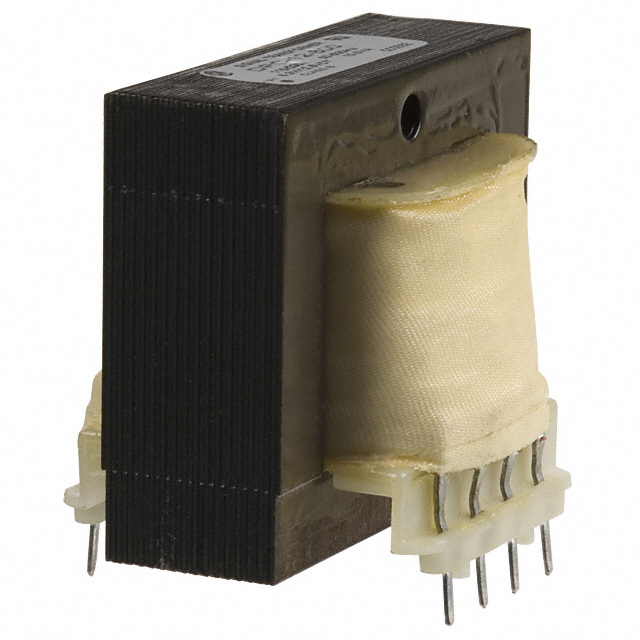

| Description: | PWR XFMR LAMINATED 10VA TH |
| Manufacturer | Signal Transformer |
| Encapsulation | Box |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Signal Transformer" |
| Size / Dimension | 47.60mm L x 36.50mm W |
| Mounting Type | Through Hole |
| Type | Laminated Core |
| Weight | 0.563 lb (255.37 g) |
| Termination Style | PC Pin |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Power - Max | 10VA |
| Voltage - Isolation | 1500Vrms |
| Current - Output (Max) | Parallel 900mA, Series 450mA |
| Voltage - Primary | 115V, 230V |
| Height - Seated (Max) | 41.27mm |
| Voltage - Secondary (Full Load) | Parallel 12V, Series 24V |
| Center Tap | No |
|
