| Part number: | AD-SMAJHDEFIJ-1 |

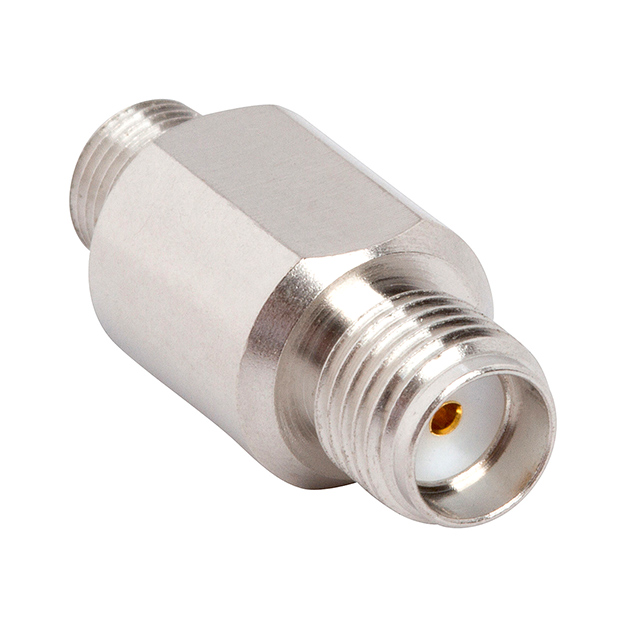

| Description: | ADAPTER, SMA JACK TO HD-EFI JACK |
| Manufacturer | Connex (Amphenol RF) |
| Encapsulation | Bulk |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Connex (Amphenol RF)" |
| Features | Limited Detent |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
| Convert From (Adapter End) | SMA Jack, Female Socket |
| Convert To (Adapter End) | EFI, HD Jack, Male Pin |
| Operating Temperature | -55°C ~ 125°C |
| Fastening Type | Snap-In, Threaded |
| Dielectric Material | Polyetheretherketone (PEEK); Polytetrafluoroethylene (PTFE) |
| Adapter Series | SMA to EFI, HD |
| Adapter Type | Jack to Jack |
| Center Gender | Female to Female |
| Conversion Type | Between Series |
| Body Material | Brass |
| Mating Cycles | 50, 500 |
| Center Contact Material | Beryllium Copper |
| Body Finish | White Bronze |
| Center Contact Plating | Gold |
| Frequency - Max | 6 GHz |
|
