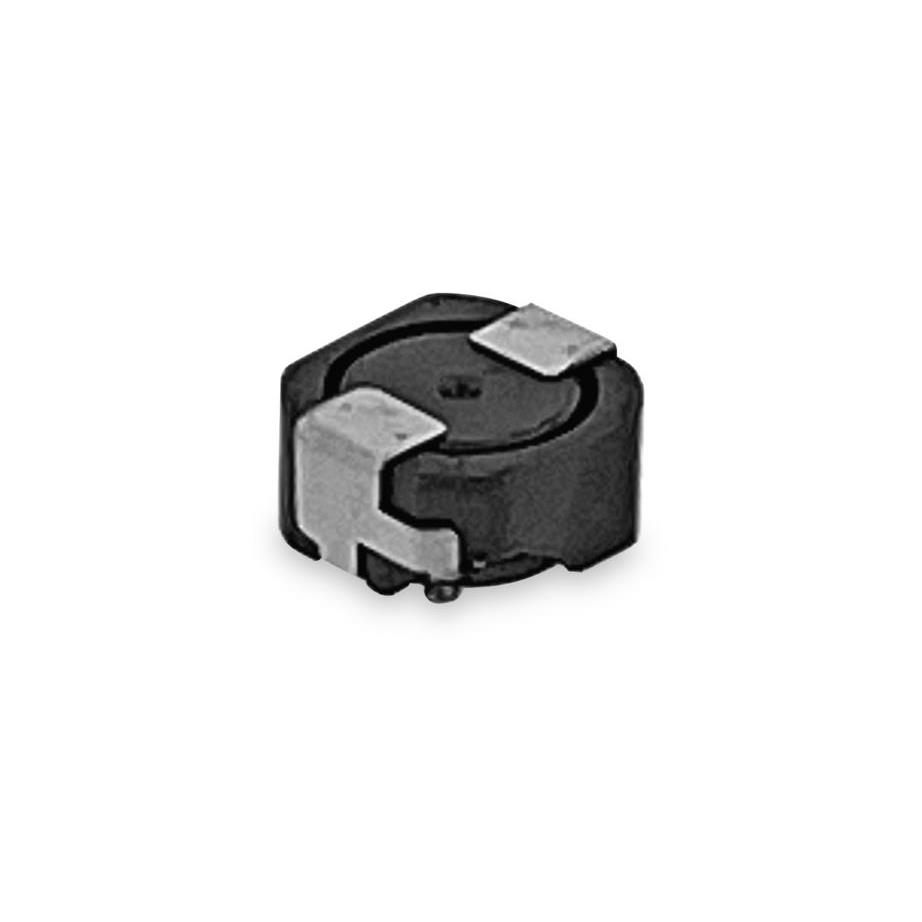

| Part number: | TCK-149 |
| Description: | FIXED IND 22UH 1.1A 240MOHM SMD |
| Manufacturer | TRACO Power |
| Encapsulation | Bag |
| Quantity | 10 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TRACO Power" |
| Tolerance | ±20% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.209" L x 0.197" W (5.30mm x 5.00mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 240mOhm |
| Inductance Frequency - Test | 100 kHz |
| Height - Seated (Max) | 0.126" (3.20mm) |
| Inductance | 22 µH |
| Current Rating (Amps) | 1.1 A |
|
