| Part number: | SK006VTP |
| Description: | SCR 1KV 6A TO251 |
| Manufacturer | Wickmann / Littelfuse |
| Encapsulation | Tube |
| Quantity | 750 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Wickmann / Littelfuse" |

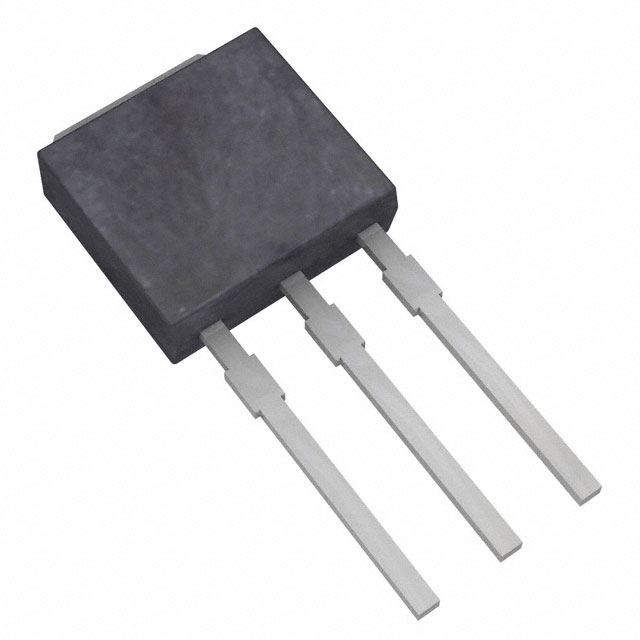

| Package / Case | TO-251-3 Short Leads, IPak, TO-251AA |
| Mounting Type | Through Hole |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 125°C |
| Current - Hold (Ih) (Max) | 30 mA |
| Current - Gate Trigger (Igt) (Max) | 15 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 83A, 100A |
| Current - On State (It (AV)) (Max) | 3.8 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Voltage - On State (Vtm) (Max) | 1.6 V |
| Current - Off State (Max) | 20 µA |
| Supplier Device Package | TO-251 (V-Pak/I-Pak) |
| Current - On State (It (RMS)) (Max) | 6 A |
| Voltage - Off State | 1 kV |
|
