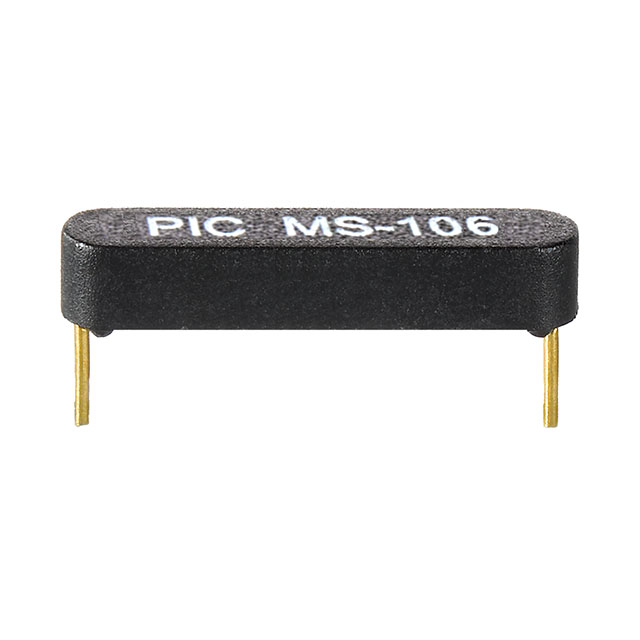

| Part number: | MS-106-3-2 |
| Description: | SWITCH REED SPST-NO 700MA 130V |
| Manufacturer | PIC GmbH |
| Encapsulation | Bulk |
| Quantity | 500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "PIC GmbH" |
| Mounting Type | Through Hole |
| Circuit | SPST-NO |
| Type | Molded Body Reed |
| Operating Temperature | -20°C ~ 85°C |
| Termination Style | PC Pin |
| Length - Overall | 0.669" (17.00mm) |
| Power - Rated | 10W |
| Height Above Board | 0.126" (3.20mm) |
| Current - Switching | 700mA (AC/DC) |
| Voltage - Switching DC | 180 V |
| Operate Time | 0.5 ms |
| Release Time | 0.3 ms |
| Size - Body | 0.669" L x 0.110" W x 0.126" H (17.00mm x 2.80mm x 3.20mm) |
| Operate Range | 15 ~ 20AT |
| Release Range | 4AT |
| Current - Carry | 1A (AC/DC) |
| Voltage - Switching AC | 130 V |
|
