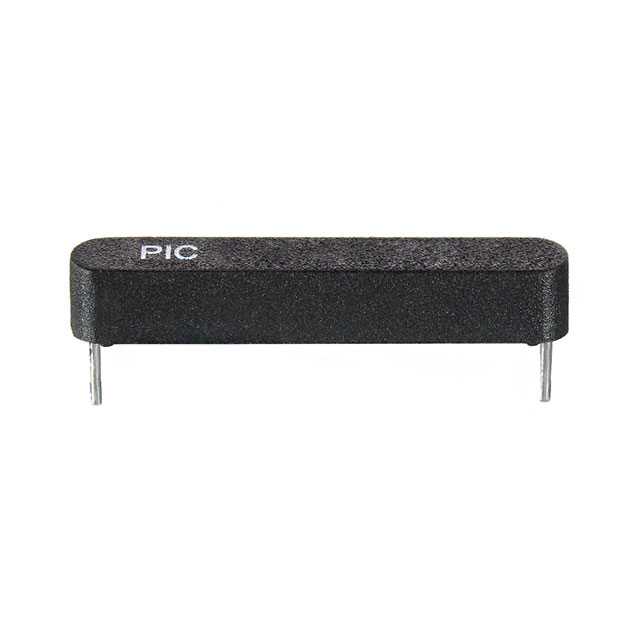

| Part number: | MS-108-3-3 |
| Description: | SWITCH REED SPST-NO 1A 140V |
| Manufacturer | PIC GmbH |
| Encapsulation | Bulk |
| Quantity | 500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "PIC GmbH" |
| Mounting Type | Through Hole |
| Circuit | SPST-NO |
| Type | Molded Body Reed |
| Operating Temperature | -20°C ~ 85°C |
| Termination Style | PC Pin |
| Length - Overall | 0.878" (22.30mm) |
| Power - Rated | 10W |
| Height Above Board | 0.165" (4.20mm) |
| Current - Switching | 1A (AC/DC) |
| Voltage - Switching DC | 200 V |
| Operate Time | 1 ms |
| Release Time | 0.4 ms |
| Size - Body | 0.878" L x 0.130" W x 0.165" H (22.30mm x 3.30mm x 4.20mm) |
| Operate Range | 20 ~ 25AT |
| Release Range | 5AT |
| Current - Carry | 1.2A (AC/DC) |
| Voltage - Switching AC | 140 V |
|
